Omega Machine & Tool Inc. is pleased to announce the immediate availability of a new tool to complement our growing line of tools.

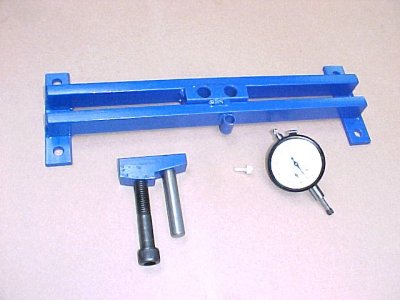

The tool is used to pull the valve body area back to original configuration. Often in the rush of a repair, the center support bolts are over-tightened, and the case is concaved in the center support area. Our tool has three main parts to it. One part bolts to the pan rail and one piece is placed inside the case. The internal piece has a stud that goes up through one center support hole and then a provided bolt threads down through the tool and into the internal piece of the tool. When you tighten the bolt, the case is pulled back to dimension. A dial indicator is provided to track the movement of the valve body area.

Call Omega Machine & Tool, Inc. for more information.

Ask a question
Internal piece in place

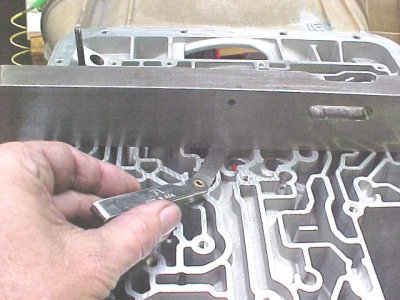

Adjusting the deck height

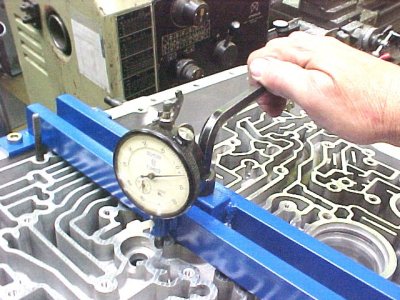

Checking for flatness
Download PDF Flyer
Part # 73320
